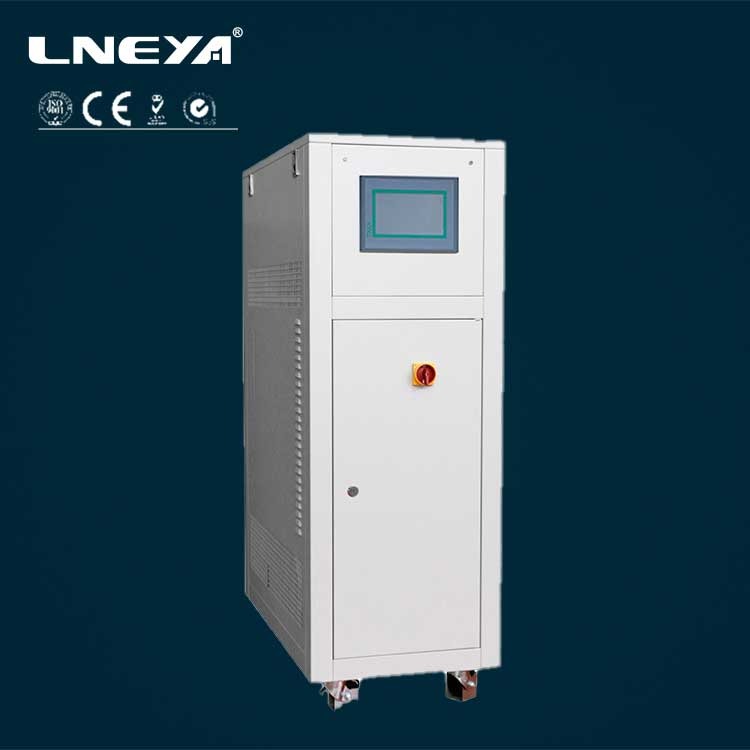

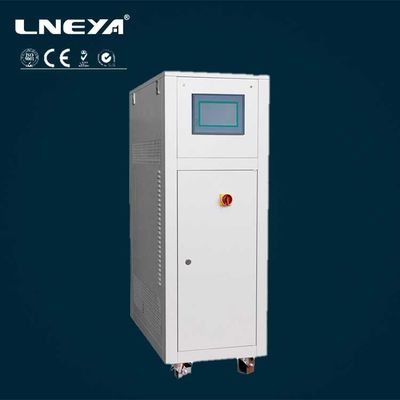

Refrigerated and Heated Recycling Heater Chiller Machine HRT-25N

1.0 Sets
MOQ
Refrigerated and Heated Recycling Heater Chiller Machine HRT-25N
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Warranty: 1 year
Classification: Laboratory Thermostatic Devices
Customized support: OEM, ODM, OBM
Model Number: HRT-25N
Product Name: Refrigerated and Heating Recirculating Heater Chiller Machine
Temperature range ℃: -45℃~250℃
Temp. accuracy: ±0.5℃
Heating power: 2.5~15KW
Circulation pump: 20~110L/min 2bar
Expansion valve: Danfoss
Oil separator: Emerson
Tank volume: 8~25L
Weight: 160~360KG
Compressor: Tecumseh or customization
Βασικές πληροφορίες
Model Number: HRT-25N
Πληρωμής & Αποστολής Όροι
Packaging Details: Standard Wooden case
Supply Ability: 300 Set/Sets per Month
Περιγραφή προϊόντων
Products Description
1
Upper air outlet design
5
Liquid inlet and outlet interface
2
Liquid crystal display
6
Pressure gauge
3
Communication interface
7
Drain port
4
Electrical cabinet
8
Power interface

Compressor:

Multi-safety protection, more reliable operation. TECUMSEH compressor, DANFOSS compressor, EMERSON compressor, automatic cascade refrigeration technology.

Electrical Cabinet:

With self-diagnosis functions, freezer overload protection, overload relays, thermal protect device and other security functions, and fully guarantee the use of safety.

Communication Protocol:

Support USB data communication interface, convenient data export, optional with RS485 interface, Modbus RTU protocol.

Customized products

We support customization services, pls click to consult us for details.
Product Paramenters
Model

HRT-
25N
HRT-
35N
HRT-
50N
HRT-
70N
HRT-
100N
HRT-
150N
Temp range
-45~250 ℃

Temperature Accuracy
±0.5℃
Heating power (KW)
2.5
3.5
5.5
7.5
10
15
Cooling capacity (KW)
250℃
2
3.5
5.5
7.5
10
15
100℃
2
3.5
5
7
10
15
20℃
2
3.5
5
7
10
15
0℃
1.8
3
5
7
10
15
-20℃
0.85
1.5
2.8
4.2
6
11
-40℃
0.25
0.45
0.9
1.5
2
3.75
Circulation pump flow
20L/min
35L/min
35L/min
50L/min
65L/min
110L/min
Circulating pump pressure
2BAR
2BAR
2BAR
2BAR
2BAR
2BAR
Interface size
G1/2
G3/4
G3/4
G3/4
G1
G1
Expansion tank volume
8L
13L
15L
18L
22L
25L
Be equipped with extra connection of expansion tank（G1/2)
Compressor
Mitsubishi
Copeland
Evaporator
Plate heat exchanger
Data Record
U disk data export, Excel form, error record
Temperature Record
Record setting temperature, outlet and inlet temperature
Refrigerant
R-404A/R507C
Dimension cm
50*85
*130
50*85*130
55*100
*175
70*100
*175
70*100
*175
80*120
*185
Power max  50HZ
AC220V
4.5KW
AC380V
5.5KW
AC380V
9KW
AC380V
9KW
AC380V
16KW
AC380V
23KW
Case Material
Cold rolled steel
Optional
MODBUS RTU Protocl, RS 232 interface
Optional Power
220V 60HZ three-phase，440V～480V 60HZ three phase
Weight kg
160
185
245
245
320
360
Why Choose Us
Features of cooling and heating circulator
1. Wide working temperature range with cooling and heating function, temperature range: -45~250℃. 2. With 2pcs of LED display controller, can show the setting temperature & actual value, and alarm value for over-temperature. 3. Efficient fast, simple topping up liquid. 4. Ensure fast cooling at high temperature and can achieve 250℃~-55℃ temperature control continuously. 5. The cycle system is closed, there is no oil mist and water vapor happened, so as to assure the lab safety and heat transfer fluid lifetime. 6. Use Copeland brand compressor, circulation pump, stable performance and reliable quality. 7. Self-diagnosis function; freezer overload protection; high pressure switch, overload relay, thermal protection device, liquid low level protection, high temperature protection and temperature fault protection. 8. Use the same kind of heat conducting in the whole heating-cooling cycle when control heat conducting medium temperature. 9. High-lift design and meet the long-distance transportation of heat conducting medium.
Company Profile
Wuxi Guanya Refrigeration Technology Co., Ltd. specialized in the industrial chiller, environmental chamber, industrial freezer, thermostatic bath, multi-reactor chiller (TCU), recirculating air control system and ultra-low temp. water-cooled chiller.We are the technology leader for high precision thermoregulation solutions in research and development industry. Our products ensureprecise temperature control throughout the whole world in the semiconductor industry, chemical/pharmaceutical industry, biotechnology industry, research/lab/university, food/medical/hospital(health)and laptop/Mobile Phone. Our products offer temperature control solutions for applications from -152 to +350℃.
Exhibition
LNEYA attends various exhibitions at home and abroad every year. At the exhibition, we show the latest research equipment of LNEYA. Every year, long-term cooperative customers will come to exhibitions and communicate with us. We are also actively developing new customers to provide them with high quality machines and services.
Certifications
So far, LNEYA has 11 patents of utility model authorized certificate.
As an enterprise certified by ISO9001, LNEYA has reached international standards in the integration of various management systems. The products of LNEYA, CE is used as a permit for the product to enter the European market.
FAQ
Q: How many years have your factory been established？ Our company was established in 2006, registered the LNEYA trademark in 2007 and began to develop industrial temperature control equipment.
Q: Are you a trader or a manufacturer？ We are a professional manufacturer of industrial temperature control equipment, and have agents in the United States, South Korea, Russia, Thailand and India.
Q: How long is the warranty? One-year free warranty. During the warranty period, no maintenance fees and accessory fees will be charged (the cost of spare parts will be charged for instrument failure caused by human factors). After the warranty period, the equipment will be responsible for maintenance for life, and appropriate fees will be charged according to the actual maintenance costs.
Q: Do you provide customized services? Of course, you only need to send your specific requirements, and we will provide you with the products you want.
