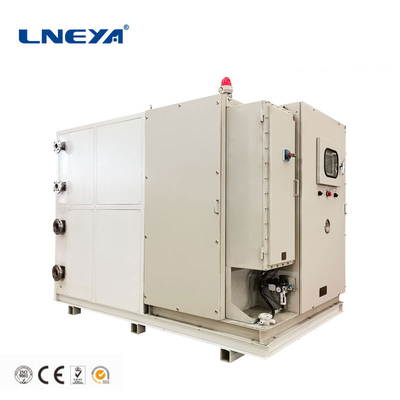

Building Material Shops Ultra Low Temperature Water Cooled Chiller Industrial Cooling Machine

1.0 Sets
MOQ
Building Material Shops Ultra Low Temperature Water Cooled Chiller Industrial Cooling Machine
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Printing Shops, Construction works , Energy & Mining
Showroom Location: United States, India, Russia, Thailand, South Korea
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty of core components: 1 Year
Core Components: PLC, Bearing, Gearbox, Pressure vessel, Gear, Pump
Condition: new
Type: Water-cooled
Voltage: 380V 50HZ
Dimension(L*W*H): 100*150*185~650*220*235CM
Weight: 950 KG
Warranty: 1 Year
Power: 14~588KW
Working Temperature Range: -80~-30℃
Key Selling Points: Automatic
Product name: Ultra Low Temperature Water Cooled Chiller Industrial Chilling Machine
Temperature range: -80°C~-30°C
Cooling capacity@-60°C: 6~270KW 5160~232200Kcal/h
Connection: DN25~DN80
Display: 7 inch touch screen
Expansion tank: 100~2200L
Pump: 6.6~65m3/h
Drying filter core: Emerson
Dimension: 100*150*185~650*220*235CM
Refrigerant: Mixed Refrigerant
Βασικές πληροφορίες
Πληρωμής & Αποστολής Όροι
Packaging Details: Standard Wooden Package
Supply Ability: 200 Set/Sets per Month
Περιγραφή προϊόντων
Products Description
Ultra low temperature chiller
Support Customization
-25 ~ -5 ℃
-45 ~ -10 ℃
-60 ~ -10 ℃
-80 ~ -30℃
-110 ~ -50 ℃

Customized products

We support customization services, pls click to consult us for details.
Product Paramenters
Model

LD-
4W
LD-
6W
LD-
8W
LD-
12W
LD-
20W
LD-
30W
LD-
40W
LD-
60W
LD-
90W
Temp range
-80~-30 ℃
-10~+200 ℃
Cooling capacity (KW)
AT -60 ℃
6
9
12
18
30
45
60
90
135
5160
Kcal/h
7740
Kcal/h
10320
Kcal/h
15480Kcal/h
25800
Kcal/h
38700
Kcal/h
51600
Kcal/h
77400
Kcal/h
116100
Kcal/h
Circulation pump info
6.6
m³/h
2.5bar
6.6
m³/h
2.5bar
9
m³/h
2.5bar
15
m³/h
2.5bar
25
m³/h
2.5bar
25
m³/h
2.5bar
25
m³/h
2.5bar
35
m³/h
2.5bar
35
m³/h
2.5bar
Inlet&outlet connection size
DN25
DN25
DN32
DN40
DN50
DN50
DN50
DN65
DN65
Expansion tank
100L
175L
250L
350L
500L
600L
750L
1000L
1350L
Compressor
Dorin semi-closed compressor
Dorin compressor/HANBELL、Fusheng
Operation Panel
7-inch color touch screen display, temperature curve record
Control System
SIEMENS S7 PLC&Module，Set temperature difference of refrigeration on & off
Circulation Pump
LNEYA Mangetic Pump/German Brand Mangetic Pump
Evaporator
Danfoss/KAORI plate heat exchanger
Refrigerant
R404A/R23/R14
Dimension cm
100*150
*185
205*145
*205
205*145
*205
205*145
*175
245*145
*205
300*160
*225
350*160
*205
400*160
*225
500*200
*225
Power max   380V 50HZ
14KW
18KW
30KW
43KW
69KW
101KW
136KW
200KW
295KW
Weight kg
950
1100
1400
1800
2200
3000
3500
4000
5000
Why Choose Us
Our advantages
1.Temperature ranges from -5℃ ~ -150℃, can meet different temperature needs. 2.Famous brand semi-closed piston compressor, semi-closed bipolar piston compressor, semi-hermetic screw compressor, main brand are BOCK, Copeland, Handbell, fusheng; Plate heat exchanger, Small volume, High efficiency. 3.Top imported cold controller; Generator cooling water circuit uses intermediate heat exchanger, improve system reliability and safety. 4. DANFOSS electronic expansion valve, high precision control. 5.Adopt Siemens PLC S7-200/300, LNEYA touch screen, automatic control, temperature curve display, temperature record U disk, fault alarm. 6.Offer machine installation and system test, users only need to finish the installation of refrigerant and cooling water.
Company Profile
Wuxi Guanya Refrigeration Technology Co., Ltd. specialized in the industrial chiller, environmental chamber, industrial freezer, thermostatic bath, multi-reactor chiller (TCU), recirculating air control system and ultra-low temp. water-cooled chiller.We are the technology leader for high precision thermoregulation solutions in research and development industry. Our products ensureprecise temperature control throughout the whole world in the semiconductor industry, chemical/pharmaceutical industry, biotechnology industry, research/lab/university, food/medical/hospital(health)and laptop/Mobile Phone. Our products offer temperature control solutions for applications from -152 to +350℃.
Exhibition
LNEYA attends various exhibitions at home and abroad every year. At the exhibition, we show the latest research equipment of LNEYA. Every year, long-term cooperative customers will come to exhibitions and communicate with us. We are also actively developing new customers to provide them with high quality machines and services.
Certifications
So far, LNEYA has 11 patents of utility model authorized certificate.
As an enterprise certified by ISO9001, LNEYA has reached international standards in the integration of various management systems. The products of LNEYA, CE is used as a permit for the product to enter the European market.
FAQ
Q: How many years have your factory been established？ Our company was established in 2006, registered the LNEYA trademark in 2007 and began to develop industrial temperature control equipment. Q: Are you a trader or a manufacturer？ We are a professional manufacturer of industrial temperature control equipment, and have agents in the United States, South Korea, Russia, Thailand and India. Q: How long is the warranty? One-year free warranty. During the warranty period, no maintenance fees and accessory fees will be charged (the cost of spare parts will be charged for instrument failure caused by human factors). After the warranty period, the equipment will be responsible for maintenance for life, and appropriate fees will be charged according to the actual maintenance costs. Q: Do you provide customized services? Of course, you only need to send your specific requirements, and we will provide you with the products you want.
