Product Description

Air-cooled features:

1.Compact structure, stable operation, low vibration, low noise, light aluminum piston reduce the friction and vibration

2.Easy to dismantle and assemble, easy to be well maintained.

3.Concealed & electronic Motorschutz, high electronic protection technique guarantee the motor quality

4.Large oil charge and special designed oil recycle system make sure bearing’s lubrication.

5.No leaking in refrigerant and oil.

Application Range

Item Refrigerant	R22		R134a	R404a	R407a	R407a	R407c
Evaporating Temperature	-40~+12.5°C		-20~+12.5°C	-40~+10°C	-40~-10°C	-40~-10°C	-30~+10°C
Condensing Temperature	30~45°C ( Water-Cooling ) 30~50°C ( Air-Cooling )
Max.Pressure Difference	1.83Mpa
Max. Compression Ratio	18
Max.Discharge temperature	135°C ( Surface of Exhaust Pipe )
Suction Superheat	Min.:10°C Max.: Make sure the Max. Superheat when lower than Exhaust Temperature 135°C
Max.Oil Temperature	80°C
Power Supply	3Ph 380/440V 50/60Hz
Motor Temperature	Lower 105 °C
Refrigeration Oil	SUNISO 3GS	SUNISO SL32S
Max.Ambient Temperature	43°C

Packaging & Shipping

Packing: PALLET, wooden case or with outer carton, or as per customers' specific requirements.

Shipping: Sample By Express (DHL /UPS /TNT /FedEx /EMS), By Air, Mass products By Sea.

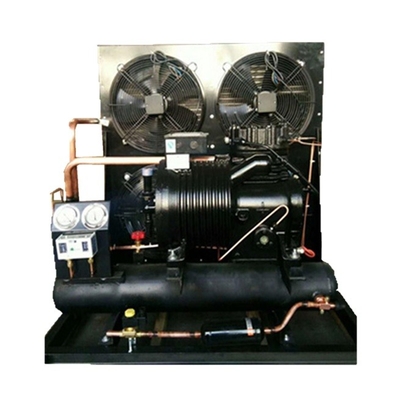

Air Cooled Refrigeration Parts 15HP Condensing Unit With Semi-Hermetic Compressor 4VS-1500
