Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα

Χαρακτηριστικά

Προδιαγραφές

Condition: New

Model Number: LTM

Ice Shape: Flake Ice

Voltage: 380

Power: 30000

Dimension(L*W*H): 1900 x 1400 x 1450

Weight: 1150kg

Warranty: one year

After-sales Service Provided: Engineers available to service machinery overseas

Πιστοποίηση: ce

Capacity: 1T to 50T, 1T to 50T

Flake Ice Thickness: 1.5-2.6mm

Condensing Temperature: +40Â°C

Evaporating Temperature: -25Â°C

Refrigerant: R404A

Βασικές πληροφορίες

Πιστοποίηση: ce

Model Number: LTM

Πληρωμής & Αποστολής Όροι

Packaging Details: package in wooden cases

Supply Ability: 15 Set/Sets per Month

Περιγραφή προϊόντων

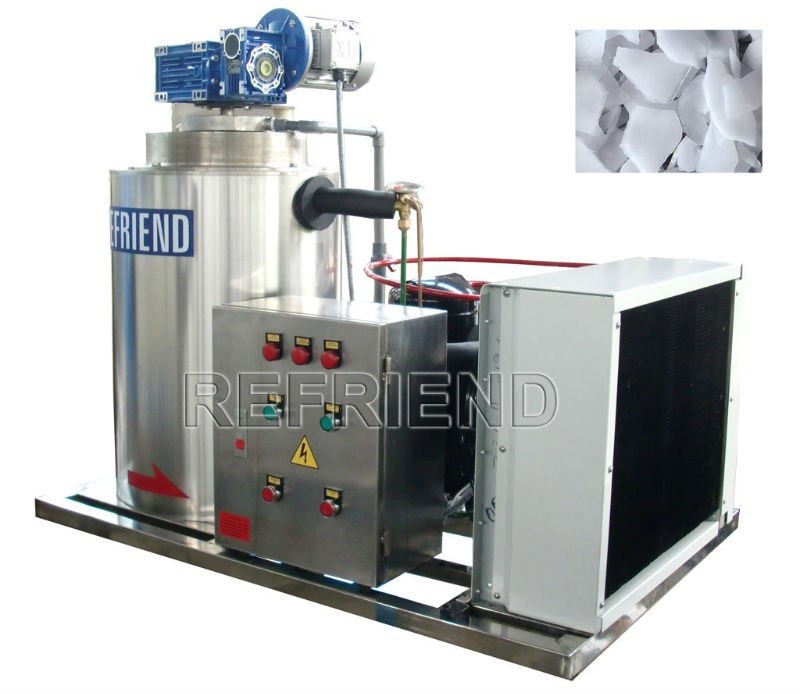

Seawater Flake Ice Machine For fishing vessel

Introduction:

This seawater flake ice machine is usually used for fishing vesel, seawater is the ice making water.

the seawter flake ice is used for seafood preservation.

Bitzer Compressor Unit and Schneider Electric Parts keep our machine high performance.

Stainess steel material is mainly used for ocean enviroment, corrosion-resistent.

PLC automaticaly Controlled. Phase protector, Pressure alert, lack Water Alert, overload alert and so on.

Capacity is from 1T to 25T

Specifications:

1. Capacity: 1T to 25T/day.

2. Evaporator Designed for seawater, corrosion-resistent .

3. Air cooled/ water cooled .

4. Refrigerant: R22/R404a .

5. Bitzer Compressor and Danfoss refrigeration parts

Feel free to contact us to get more details, sky-pe:refriend1018.

Model		LT-5000W (LT-5000A)	LT-8000W	LT-10000W	LT-12000W	LT-15000W	LT-20000W	LT-25000W
Daily output ( MT/24hr)		5	8	10	12	15	20	25
Ambient Temp.		+32°C
Water Temp.		+20°C
Cooling capacity (KW)		32	52	65	78	98	130	165
Compressor brand		Bitzer		Bitzer / Hanebll
Refrigerant		R404A / R22
Running power(KWH)		20	30	38	48	62	75	98
Install power(KW)		30	40	45	55	70	90	120
Power		380V/3P/50Hz
Cooling Type		"A” — air cooling ;"W" — water cooling
Dimension (mm)	Length	1900 (2500)	2600	2600	2600	3000	3200	3200
	Width	1400 (1600)	1600	1600	1600	2000	2000	2000
	Height	1450 (1550)	1550	1750	1950	1950	2200	2550
Weight(kg)		1150 (1350)	1650	2100	2350	2800	3400	3800
a) Cooling capacity is based on evaporating temperature at -15°C,condensing temperature at +38°C; b) The machine also can be used by seawater, it's need to mark on the order.
Note: Model and specifications can be subject to change without notice.
